TensorFlow Lite - Magic Wand

Materials

  • AmebaD [RTL8722DM / RTL8722CSM / RTL8722DM MINI] x 1

  • Adafruit LSM9DS1 accelerometer

  • LED x 2

Example

Procedure

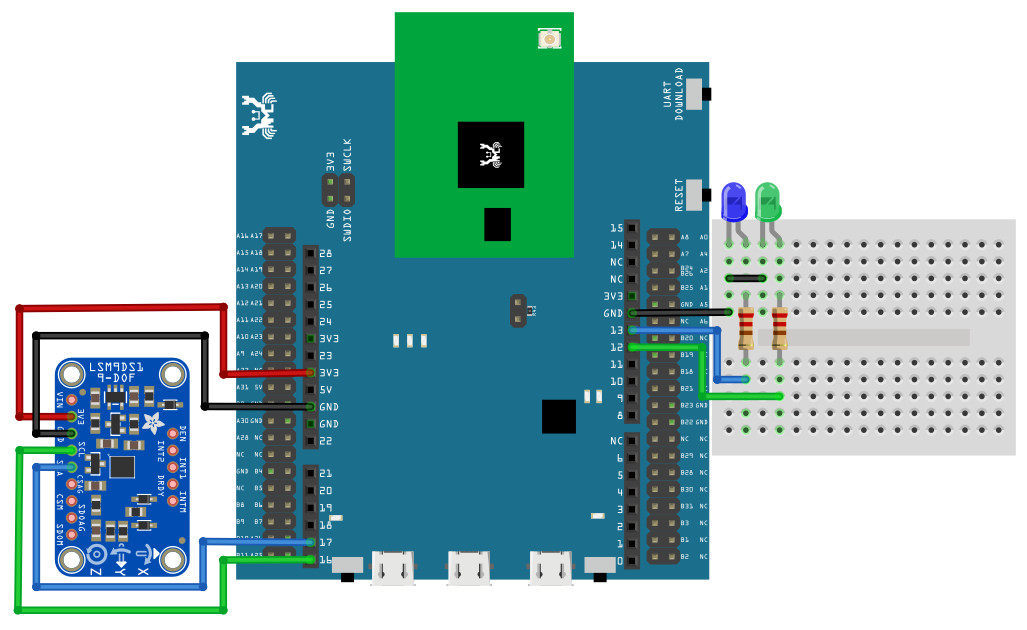

RTL8722DM / RTL8722CSM Wiring Diagram:
Connect the accelerometer and LEDs to the RTL8722 board following the diagram.

1

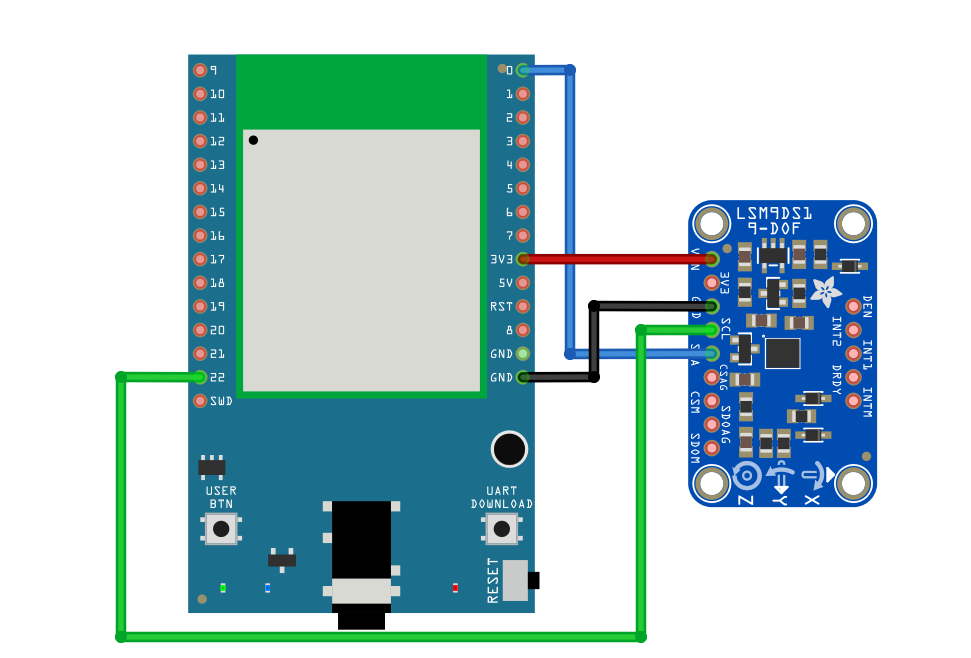

RTL8722DM MINI Wiring Diagram:
For RTL8722DM MINI, we will use the onboard LEDs on the board itself.

1-1

Download the Ameba customized version of TensorFlow Lite for Microcontrollers library at https://github.com/ambiot/ambd_arduino/tree/master/Arduino_zip_libraries.
Follow the instructions at https://www.arduino.cc/en/guide/libraries to install it.
Ensure that the patch files found at https://github.com/ambiot/ambd_arduino/tree/master/Ameba_misc/ are also installed.
In the Arduino IDE library manager, install the Arduino_LSM9DS1 library. This example has been tested with version 1.1.0 of the LSM9DS1 library.

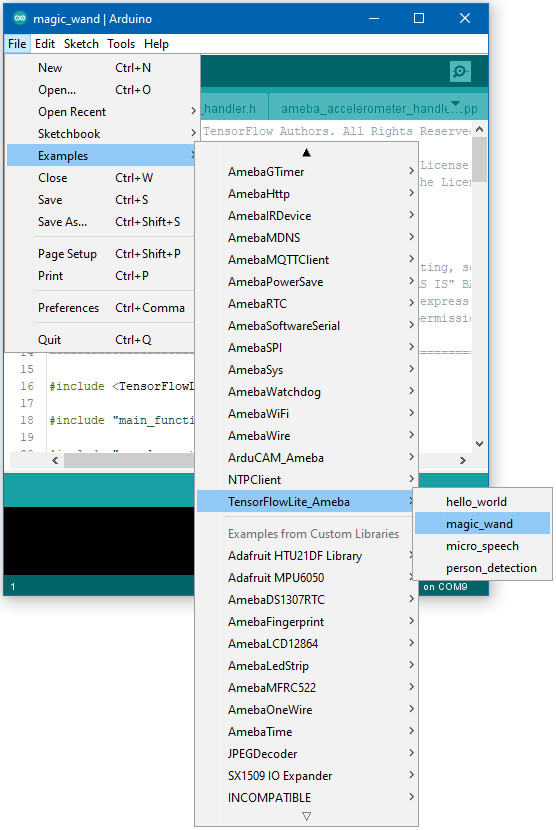

Open the example, "Files" -> "Examples" -> “TensorFlowLite_Ameba” -> “magic_wand”.

2

Upload the code and press the reset button on Ameba once the upload is finished.

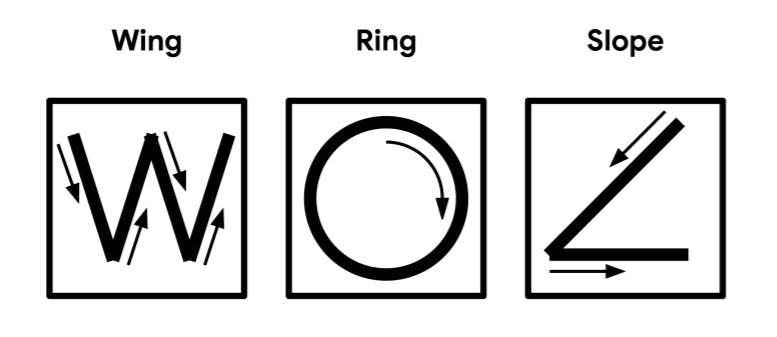

Holding the accelerometer steady, with the positive x-axis pointing to the right and the positive z-axis pointing upwards, move it following the shapes as shown, moving it in a smooth motion over 1 to 2 seconds, avoiding any sharp movements.

3

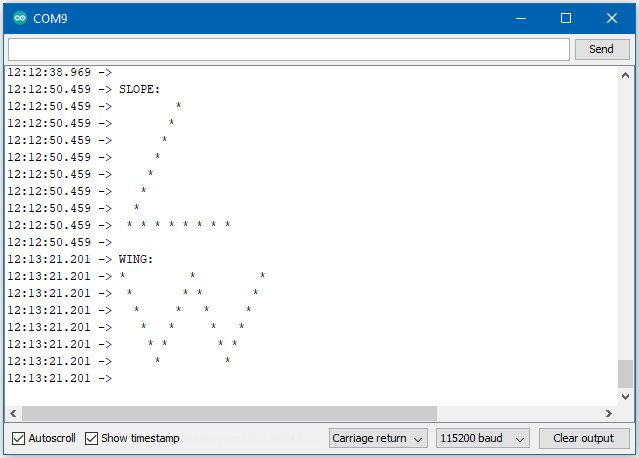

If the movement is recognised by the Tensorflow Lite model, you should see the same shape output to the Arduino serial monitor. Different LEDs will light up corresponding to different recognized gestures.
Note that the wing shape is easy to achieve, while the slope and ring shapes tend to be harder to get right.

4

Code Reference

More information on TensorFlow Lite for Microcontrollers can be found at: https://www.tensorflow.org/lite/microcontrollers
